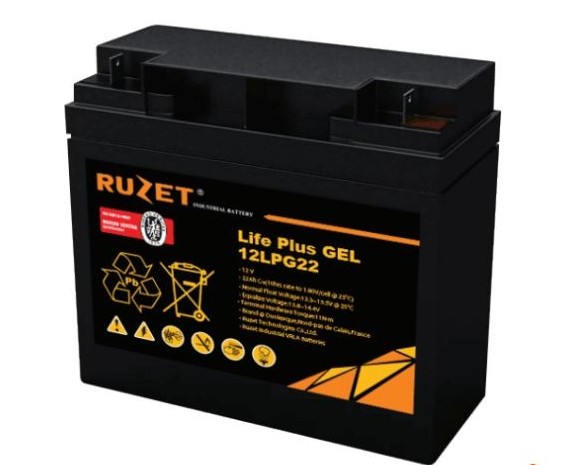

路盛蓄电池12LPG22（南昌）最新图片、电池来电有惊喜
The French way battery (LPG) series
France road sheng battery (LPG) series products adopt advanced technology of colloid, under control and poor uncontrolled environment can provide a stable performance and high reliability. In communications, industrial areas such as solar and wind power reserve, its outstanding performance are derived from the French way sheng (RUZET) mature international experience and reliable colloid battery technology. Electrolytes are fixed in the colloid to ensure RUZET colloidal battery and no leakage characteristics of free maintenance. LPG series in continuous floating and recycling are applicable.
parameter
Design of floating life: 15 years @ 25 ℃
Float charging voltage: 13.26-13.50 V/day @ 25 ℃, temperature correction - 20 mv / ℃
Equalizing charge: 13.8-14.4 V/day @ 25 ℃, temperature correction - 25 mV / ℃
Recycle charging voltage: 14.4-15.0 V/day @ 25 ℃, temperature correction - 30 mv / ℃
Current: 0.25 C10
80% deep circulation cycle count: about 650 times
Self-discharge rate: 1% per month or less
法国路盛蓄电池（LPG）系列
法国路盛蓄电池（LPG）系列产品采用先进的胶体技术，在可控和恶劣的不可控环境下均能提供稳定性能和高可靠性。无论在通信、工业还是太阳能和风能电源储备等领域，其卓越性能均源自于法国路盛（RUZET）成熟的国际经验和可靠的胶体电池技术。电解质被固定在胶体中以保证RUZET胶体蓄电池和不漏液免维护的特性。LPG系列在连续浮充和循环使用场合均可适用。
参数
设计浮充寿命：15年@25℃
浮充电压：13.26-13.50 V/节 @25℃，温度修正-20mV/℃
均衡充电：13.8-14.4 V/节 @25℃，温度修正-25 mV/℃
循环使用充电电压：14.4-15.0 V/节 @25℃，温度修正-30mV/℃
电流：0.25C10
80%深度循环充放电次数：约650次
自放电率：≤1% 每月
LPG系列型号规格
型号 (V) | 电压 （V） | 容量 (C20) | 容量 (C10) | 容量 (C1) | 外形尺寸（mm） | 重量 （kg） | 内阻 （mΩ） | 端子形式 |
| 长 | 宽 | 高 |
| 12LPG22 | 12 | 24 | 22 | 13.8 | 175 | 167 | 125 | 8.9 | 24 | C |
| 12LPG33 | 12 | 35 | 33 | 19.4 | 197 | 165 | 170 | 13.7 | 14.9 | C |
| 12LPG40 | 12 | 42 | 46 | 23.5 | 197 | 165 | 170 | 15.0 | 13 | C |
| 12LPG45 | 12 | 47 | 45 | 26.5 | 197 | 165 | 170 | 16.7 | 12 | C |
| 12LPG50 | 12 | 53 | 50 | 29.4 | 257 | 132 | 200 | 19.7 | 10 | C |
| 12LPG65 | 12 | 69 | 65 | 38.2 | 348 | 167 | 178 | 23.0 | 9 | C |
| 12LPG75 | 12 | 80 | 75 | 44.1 | 259 | 168 | 214 | 28.5 | 8.2 | C |
| 12LPG90 | 12 | 96 | 90 | 52.9 | 306 | 168 | 230 | 31.0 | 7 | D |
| 12LPG100 | 12 | 106 | 100 | 58.8 | 330 | 173 | 220 | 38.5 | 6.8 | D |
| 12PG120 | 12 | 128 | 120 | 70.6 | 410 | 177 | 225 | 47.3 | 5.2 | D |
| 12LPG150 | 12 | 160 | 150 | 88.2 | 485 | 170 | 240 | 57.8 | 4.3 | D |
| 12LPG180 | 12 | 192 | 180 | 106 | 530 | 209 | 220 | 65.5 | 3.6 | D |
| 12LPG200 | 12 | 212 | 200 | 118 | 522 | 240 | 224 | 69.5 | 3.1 | D |
| 12LPG230 | 12 | 240 | 230 | 132 | 522 | 240 | 224 | 80.5 | 2.3 | D |
| 12LPG250 | 12 | 260 | 250 | 146 | 522 | 268 | 226 | 82 | 2.1 | D |
